Industrial processes — printing, coating, laminating, pharmaceutical manufacturing, chemical synthesis, and adhesive application — emit enormous quantities of organic solvents into exhaust air streams. Without recovery, these solvents are either released to atmosphere (violating emission regulations) or destroyed in thermal oxidizers (wasting valuable resources). Activated carbon adsorption offers a third option: capture the solvent, regenerate the carbon, condense the desorbed vapor, and return high-purity solvent for reuse.
This guide covers the complete engineering picture — how activated carbon solvent recovery works, which carbon types perform best for different solvents, system design considerations, regeneration methods, economics, and real-world performance data.
How Activated Carbon Solvent Recovery Works
The process operates on a cyclic adsorption-desorption principle using two or more activated carbon beds operating in alternating phases:
Phase 1: Adsorption

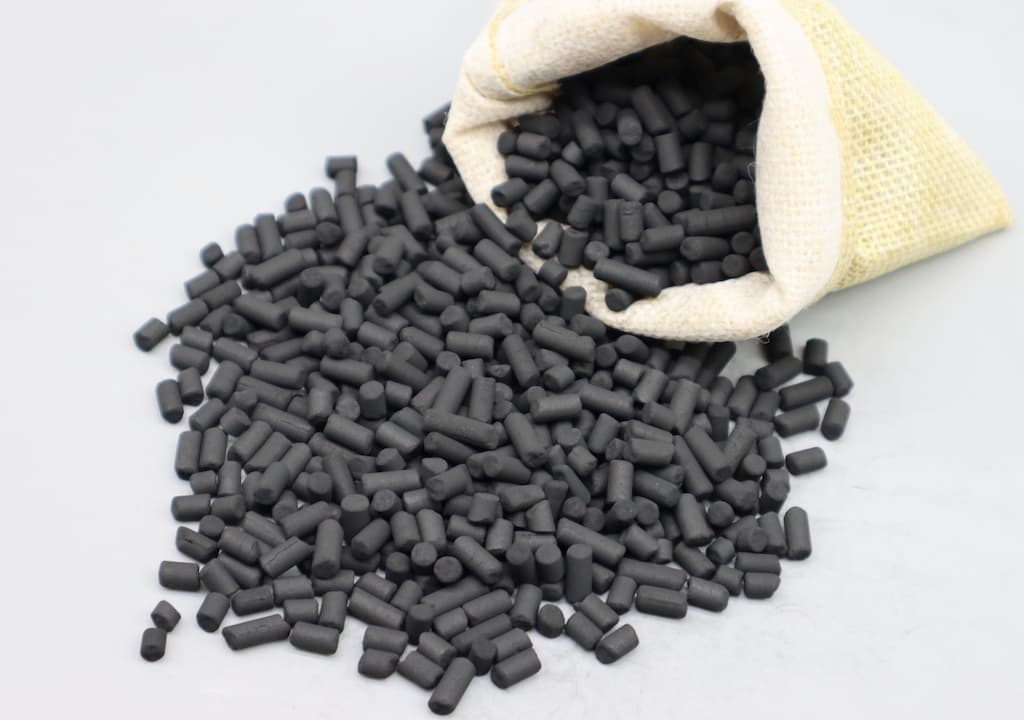

Solvent-laden exhaust air passes through a fixed bed of granular activated carbon or pelletized activated carbon. The carbon's vast internal surface area (typically 900–1,200 m²/g) adsorbs solvent molecules from the gas stream through physical adsorption (van der Waals forces). Clean air exits the bed, meeting emission limits — typically <20 mg/m³ for most regulatory frameworks.
The adsorption front moves progressively through the bed from inlet to outlet. When the front approaches the outlet (monitored by a VOC detector or timer), the bed is taken offline and switched to regeneration. This is called the "breakthrough point" — the moment when outlet solvent concentration begins rising above the permitted level.
Phase 2: Desorption (Regeneration)
The saturated bed is regenerated by passing low-pressure steam (0.3–0.5 bar gauge, 105–120°C) counter-current to the adsorption flow direction. The steam raises the carbon bed temperature and displaces adsorbed solvent molecules, carrying them out as a steam-solvent vapor mixture.
The vapor mixture is routed to a condenser (shell-and-tube or plate type) where the steam and solvent condense. For water-immiscible solvents (toluene, hexane, MEK), a gravity decanter separates the solvent layer from the condensate water. For water-miscible solvents (ethanol, acetone, IPA), distillation is needed to recover the pure solvent.
Phase 3: Drying and Cooling
After steaming, the carbon bed contains moisture that would reduce adsorption capacity in the next cycle. A drying step — passing heated dry air or ambient air through the bed for 15–30 minutes — removes residual moisture and cools the carbon back to operating temperature. The bed is then ready for the next adsorption cycle. A complete adsorption-regeneration cycle typically takes 2–8 hours, depending on solvent loading and bed size.
Industries Using Activated Carbon Solvent Recovery
| Industry | Solvents Recovered | Typical Volume | Recovery Rate |
|---|---|---|---|
| Flexographic/gravure printing | Ethyl acetate, ethanol, IPA | 100–500 t/year | 96–99% |
| Pharmaceutical manufacturing | Methanol, DCM, acetone, THF | 50–300 t/year | 95–98% |
| Adhesive tape / lamination | Toluene, ethyl acetate, MEK | 200–1,000 t/year | 97–99% |
| Coating / painting | Xylene, toluene, butyl acetate | 100–800 t/year | 95–98% |
| Chemical synthesis | Various (process-specific) | 50–500 t/year | 93–97% |
| Rubber / tire manufacturing | Hexane, heptane, naphtha | 200–600 t/year | 96–99% |
Selecting the Right Activated Carbon for Solvent Recovery
Carbon selection has the single largest impact on system performance. The ideal carbon for solvent recovery must balance four properties: high working capacity, excellent regenerability, mechanical durability, and chemical compatibility with the target solvent.
Working Capacity vs. Total Capacity
Total adsorption capacity (measured by iodine number or BET surface area) is not the same as working capacity. Working capacity is the difference between the amount adsorbed during the adsorption phase and the residual amount remaining after regeneration (the "heel"). A carbon with very high total capacity but poor regenerability may have lower working capacity than a carbon with moderate total capacity but excellent regeneration characteristics.
For solvent recovery, the key metric is the butane working capacity (BWC), also called butane retentivity. BWC measures the net amount of butane adsorbed after subtracting the residual heel — directly analogous to what happens in a real recovery system. Target BWC values for solvent recovery carbons are typically 10–16 g/100 mL.
Pore Size Distribution
Solvents are relatively small molecules (MW 30–200), so micropores (<2 nm) provide the primary adsorption capacity. However, an excessively microporous carbon (such as coconut shell) may adsorb solvents too strongly, making regeneration difficult and increasing the heel. The optimal pore structure for solvent recovery has a high proportion of "wide micropores" (1.0–2.0 nm) and small mesopores (2–5 nm), which provide high capacity with easy desorption.
Coal-based activated carbon (bituminous coal origin) typically provides this ideal pore distribution, which is why it dominates the solvent recovery market. Coconut shell carbon has too many narrow micropores for most solvent recovery applications, though it can work well for very small solvent molecules (methanol, acetone).
Mechanical Hardness and Attrition Resistance
Solvent recovery carbon undergoes thousands of adsorption-regeneration-cooling cycles during its service life, with each cycle involving thermal stress (ambient → 100–120°C → ambient) and moisture cycling. The carbon must resist mechanical breakdown under these conditions. Ball-pan hardness ≥95% (ASTM D3802) is the standard requirement. Carbon fines generated by attrition can clog downstream condensers, contaminate recovered solvent, and increase pressure drop across the bed.
Recommended Carbon Specifications
| Parameter | Standard Range | Premium Range |
|---|---|---|
| Raw material | Bituminous coal | Bituminous coal (select grade) |
| Form | 4×10 mesh granular or 4 mm pellet | 4×6 mesh granular or 4 mm pellet |
| CTC activity | ≥60% | ≥70% |
| Butane working capacity | ≥10 g/100 mL | ≥14 g/100 mL |
| Iodine number | ≥900 mg/g | ≥1050 mg/g |
| Ball-pan hardness | ≥95% | ≥97% |
| Moisture | ≤5% | ≤3% |
| Ash content | ≤12% | ≤8% |
System Design Considerations
Number of Beds
Most solvent recovery installations use two or three carbon beds. A two-bed system provides continuous operation: one bed adsorbs while the other regenerates. A three-bed system adds redundancy and allows for longer regeneration cycles, which is beneficial for high-boiling solvents that require extended steaming. Large facilities sometimes use four or more beds to handle varying production schedules and multiple emission sources.
Bed Sizing
The carbon bed must be sized to adsorb the full solvent load during one cycle before reaching breakthrough. Critical design parameters include:
- Air flow rate — total exhaust volume (m³/h) determines bed cross-sectional area; face velocity should be 0.2–0.5 m/s for optimal mass transfer
- Solvent concentration — inlet concentration (g/m³) × flow rate × cycle time = total mass to be adsorbed per cycle
- Working capacity — the kg of solvent the carbon actually retains per cycle (not total capacity) determines the required carbon volume
- Safety factor — beds are typically oversized by 30–50% to account for concentration spikes, humidity effects, and gradual capacity loss over carbon life
As a rough guideline, 1 ton of quality solvent recovery carbon can process 5,000–15,000 m³/h of air containing 1–5 g/m³ of solvent on a 4-hour adsorption cycle. Detailed design requires adsorption isotherm data for the specific solvent-carbon combination.
Regeneration Methods
Steam regeneration is the industry standard, but alternatives exist for specific applications:
| Method | Best For | Pros | Cons |
|---|---|---|---|
| Low-pressure steam | Water-immiscible solvents | Low cost, proven, efficient | Generates wastewater; not for water-reactive solvents |
| Hot nitrogen | Water-sensitive or reactive solvents | No water contact; inert atmosphere | Higher energy cost; N₂ recirculation needed |
| Vacuum swing | Low-boiling solvents | Low temperature; minimal thermal stress | High capital cost; complex equipment |
| Hot air | Non-flammable solvents only | Simple; low cost | Fire/explosion risk with flammable solvents |
For more detail on activated carbon regeneration methods, see our comprehensive technical guide.
Performance Optimization and Troubleshooting
Common issues in solvent recovery systems and their solutions:
- Declining recovery rate — usually indicates heel buildup from heavy organic contaminants in the gas stream. Solution: install a pre-filter to remove particulates and heavy organics; consider periodic high-temperature (150–200°C) nitrogen purge to remove heel; in severe cases, replace a portion of the carbon bed
- High pressure drop — caused by carbon attrition (fines accumulation), dust ingress from the process, or bed settling. Solution: replace degraded carbon; install particulate pre-filters; ensure proper carbon screening during loading
- Water in recovered solvent — common with steam regeneration of water-miscible solvents. Solution: switch to nitrogen regeneration; optimize steam volume to minimize excess condensate; add distillation column to the recovery train
- Hot spots / carbon bed fires — a serious safety concern, especially with ketone solvents (MEK, acetone) that can undergo exothermic polymerization on hot carbon. Solution: ensure complete regeneration (no trapped solvent in dead zones); install bed temperature monitoring with automatic steam quench; maintain proper face velocity to prevent channeling
- Short cycle times — the bed reaching breakthrough too quickly. Causes include higher than designed solvent concentration, elevated humidity (>70% RH reduces effective capacity by 20–40%), or carbon aging. Solution: verify inlet conditions; add a chiller/dehumidifier upstream; assess carbon condition and replace if needed
Economics: ROI and Payback Analysis
Activated carbon solvent recovery is one of the few environmental compliance technologies that generates positive ROI. The economics depend on three factors: solvent value, emission volume, and system capital cost.
| Cost Factor | Typical Range |
|---|---|
| System capital cost (installed) | $200,000–$2,000,000 (flow dependent) |
| Initial carbon charge | $1,500–$3,000/ton × 5–50 tons |
| Annual operating cost | $50,000–$200,000 (steam, power, labor) |
| Recovered solvent value | $800–$3,000/ton (solvent dependent) |
| Avoided disposal cost | $200–$800/ton of hazardous waste |
| Typical payback period | 1.5–3 years |
Example: A flexible packaging plant uses 300 tons/year of ethyl acetate. At $1,200/ton, that's $360,000/year in solvent cost. A carbon recovery system achieving 97% recovery saves 291 tons/year — $349,000 in avoided solvent purchases. With system capital of $500,000 and annual operating cost of $120,000, the net annual saving is $229,000, giving a payback of 2.2 years. Over a 15-year system life, cumulative savings exceed $3 million.
Environmental Compliance and Emission Standards
Activated carbon solvent recovery systems are designed to meet increasingly stringent emission regulations worldwide:
- EU Industrial Emissions Directive (IED) — VOC emission limits of 20–75 mg C/m³ depending on sector and substance; BAT-AEL values often require >95% capture efficiency
- US EPA MACT/NESHAP — sector-specific standards; many require 95–98% solvent capture or <20 ppmv outlet concentration
- China GB 31571/31572 — increasingly strict VOC emission standards requiring ≥97% recovery or ≤60 mg/m³ outlet concentration for key industries
- India CPCB guidelines — emerging VOC regulations targeting pharmaceutical, printing, and coating sectors
Well-designed activated carbon recovery systems consistently achieve outlet concentrations of 10–20 mg/m³, comfortably meeting the strictest current and anticipated future regulations. For more on VOC removal with activated carbon, including destruction-based approaches, see our dedicated guide.
Activated Carbon vs. Alternative Solvent Recovery Technologies
While activated carbon is the dominant technology, alternatives exist for specific niches:
- Condensation — direct cooling of exhaust air; works only at very high concentrations (>50 g/m³); rarely sufficient alone
- Membrane separation — vapor permeation membranes can concentrate solvents before condensation; used as a hybrid with carbon in some systems
- Zeolite rotary concentrators — hydrophobic zeolites on a rotating wheel concentrate dilute VOCs before carbon adsorption or thermal treatment; ideal for very high air volumes at low concentration
- Thermal/catalytic oxidation — destroys solvents rather than recovering them; appropriate when solvents have no recovery value or streams are too dilute/mixed for recovery
Activated carbon adsorption remains the optimal choice when the exhaust stream contains a single dominant solvent at moderate concentration (1–30 g/m³), the solvent has commercial value, and environmental regulations require high capture efficiency. Hybrid systems combining zeolite concentration with carbon recovery are gaining traction for very-high-volume, low-concentration streams.
Sourcing Solvent Recovery Carbon from China

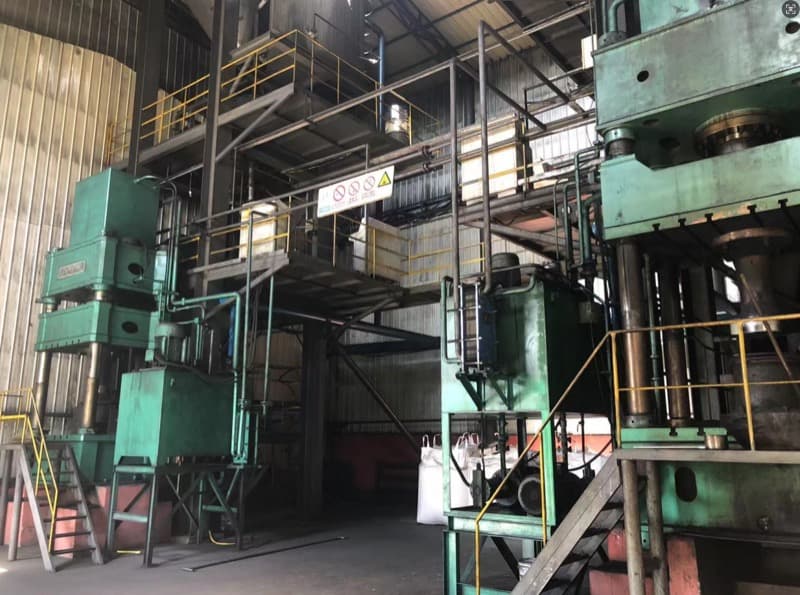

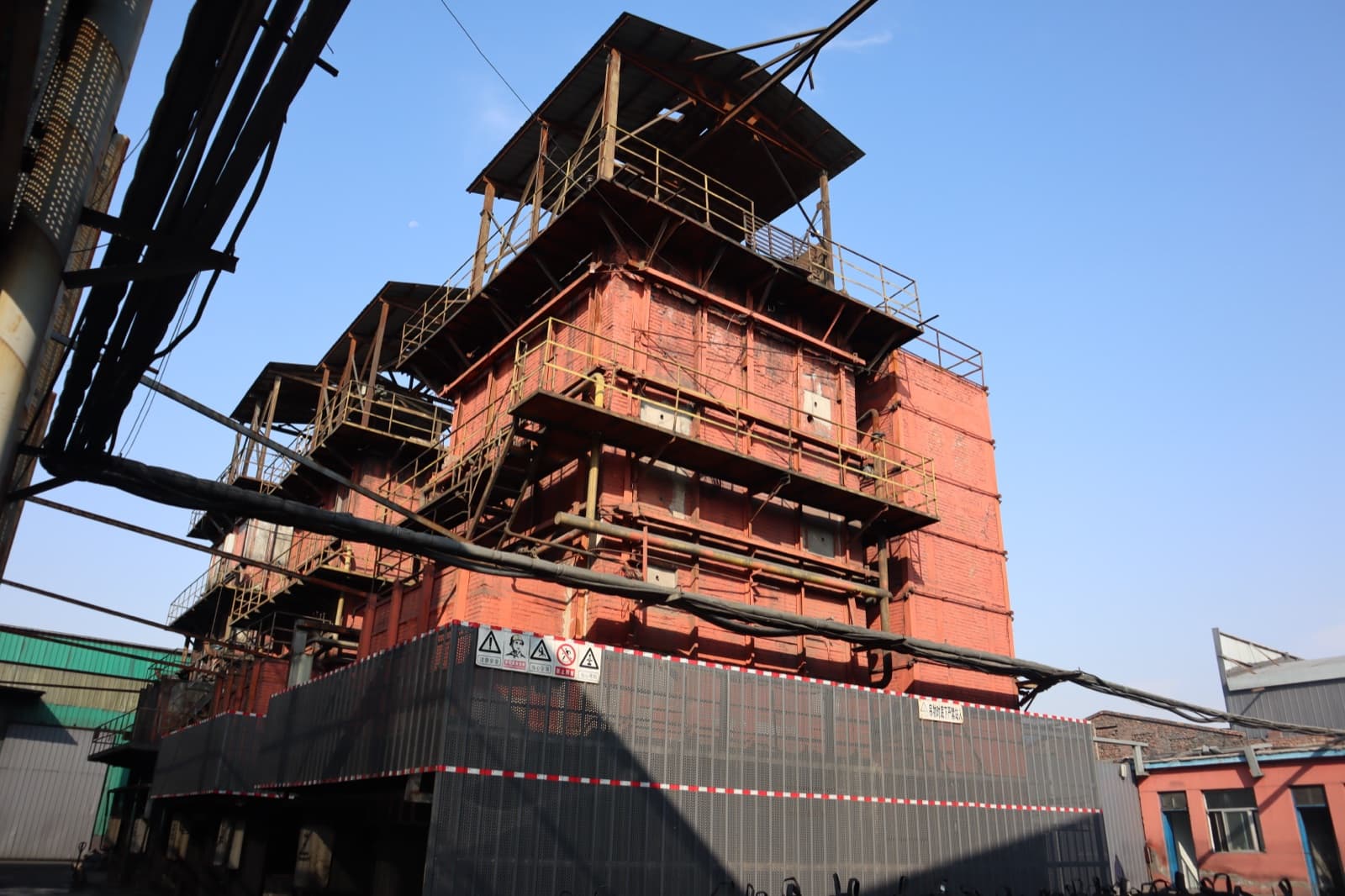

China's Shanxi and Ningxia provinces are the world's largest producers of coal-based activated carbon, including grades optimized for solvent recovery. When sourcing:
- Request CTC activity and butane working capacity (BWC) data — not just iodine number
- Verify ball-pan hardness from an independent lab — some suppliers overstate hardness figures
- Ask for a 50–100 kg sample for pilot testing in your actual system before committing to full volumes
- Confirm consistent quality across production lots — solvent recovery performance is sensitive to pore structure variation
- Consider packaging and storage requirements to prevent moisture uptake during transit
Frequently Asked Questions
What solvents can activated carbon recover?
Activated carbon is effective for recovering most organic solvents including toluene, xylene, MEK, ethyl acetate, acetone, hexane, heptane, dichloromethane, trichloroethylene, and alcohols (methanol, ethanol, isopropanol). Highly polar solvents like water or very low molecular weight compounds (methane, ethane) are poorly adsorbed. The best recovery performance is achieved with solvents having boiling points between 50°C and 200°C and molecular weights between 60 and 200 g/mol.
What is the recovery rate of activated carbon solvent recovery systems?
Well-designed activated carbon solvent recovery systems achieve 95–99% solvent recovery rates. The actual rate depends on inlet concentration, gas velocity, bed depth, carbon type, and regeneration method. Steam regeneration typically yields 95–98% recovery, while nitrogen or hot inert gas regeneration can achieve 98–99% for temperature-sensitive solvents. The recovered solvent purity after condensation and decanting is typically 95–99.5%, often sufficient for direct reuse.
How often does the activated carbon need to be replaced?
In a properly operated solvent recovery system, the activated carbon bed lasts 3–7 years before replacement is needed. Capacity loss over time (typically 5–15% after 1,000+ regeneration cycles) is caused by irreversible adsorption of heavy organics ('heel' buildup), mechanical attrition, and thermal degradation. Regular performance monitoring — tracking breakthrough time and recovery rate — indicates when replacement is needed. Some operators replace 10–20% of the bed annually on a rolling basis.
Is activated carbon solvent recovery cost-effective?
Yes, for operations using more than 50–100 tons/year of recoverable solvent. The ROI comes from recovered solvent value (avoiding fresh solvent purchases), reduced hazardous waste disposal costs, and environmental compliance. Payback periods of 1.5–3 years are typical. For example, a printing facility recovering 200 tons/year of ethyl acetate (market value ~$1,200/ton) saves $240,000/year in solvent costs alone, against a system investment of $300,000–$500,000.
What is the difference between solvent recovery and VOC destruction?
Solvent recovery (using activated carbon adsorption + regeneration) captures and recycles the solvent for reuse, generating economic value. VOC destruction (using thermal or catalytic oxidation) converts solvents to CO₂ and water, eliminating them permanently but wasting the resource. Recovery is preferred when solvent concentration is >1 g/m³, the solvent has commercial value, and the gas stream contains a single dominant solvent. Destruction is preferred for dilute, mixed-solvent streams where recovery is impractical.
