Activated Carbon for PFAS Groundwater Remediation
AFFF-contaminated aquifers at military bases, airports, and fire-training sites demand long-running, high-capacity GAC systems. Coal-based granular activated carbon engineered for pump-and-treat duty — high bed life, consistent breakthrough control, factory-direct pricing for multi-ton remediation projects. Exact specifications depend on your site conditions; we recommend the best-fit grade for your application.
The Contamination Problem
AFFF Foam Has Left PFAS in Groundwater at Thousands of Sites — GAC Is the Proven Fix
Aqueous film-forming foam (AFFF) used at military installations, civilian airports, and fire-training areas has released PFOA, PFOS, and dozens of other PFAS compounds into soil and groundwater. The US EPA 2024 MCLs of 4 ppt for PFOA and PFOS, plus the CERCLA hazardous-substance designation, now require active remediation. Granular activated carbon in pump-and-treat systems is the most widely deployed and field-proven technology for PFAS plume containment and aquifer restoration.
Our 8×30 coal-based GAC is the most commonly specified grade for pump-and-treat PFAS duty. For a comprehensive overview of PFAS treatment approaches, see our complete guide to activated carbon for PFAS removal. If your project also involves municipal drinking water supply, visit our PFAS removal overview page for product selection across all scenarios.
How It Works
How GAC Removes PFAS from Extracted Groundwater
Contaminated groundwater is extracted via recovery wells and fed above-ground. Flow rates range from 50 to 2,000+ GPM depending on plume size.
Iron, manganese, turbidity, and dissolved organics are removed upstream — these foulants compete for adsorption sites and shorten GAC bed life dramatically.
Water passes through two or more vessels in series. The lead vessel does the heavy lifting; the lag guarantees compliant effluent during carbon change-out.
Mid-point sampling (EPA Method 537.1) between lead and lag vessels triggers change-out before breakthrough reaches effluent. Spent carbon goes to thermal reactivation or incineration.
Contamination Sources
Where PFAS Groundwater Contamination Comes From
Each source presents different PFAS profiles and concentrations. Carbon grade and system design must match the specific contamination scenario.
| Source | Typical PFAS | Concentration Range | Key Challenge |
|---|---|---|---|
| Military bases (AFFF) | PFOS-dominant, PFOA, PFHxS | 10–500+ µg/L at source | Large plume, long duration |
| Civilian airports | PFOS, PFOA, 6:2 FTS | 1–100 µg/L | Active ops, space constraints |
| Fire-training areas | PFOS-dominant, precursors | 50–5,000+ µg/L at hotspot | Very high source concentration |
| Industrial discharge | Mixed long/short-chain | 1–50 µg/L | Complex co-contaminant matrix |
| Landfill leachate to aquifer | Short-chain dominant | 0.5–20 µg/L | Short-chain breaks through fast |
Carbon Selection
Which GAC We Recommend for Groundwater PFAS

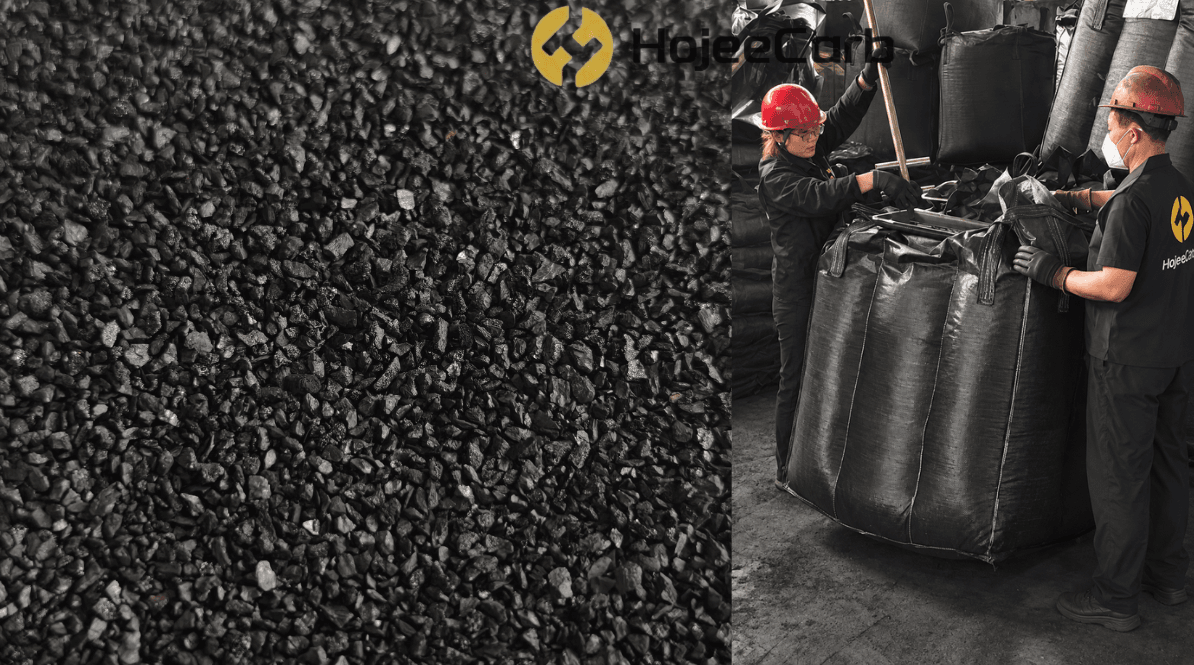

Groundwater remediation demands high-capacity carbon with excellent hardness for long run times and reactivation cycles. Coal-based granular activated carbon is the standard for this duty.
| Scenario | Recommended Carbon | Iodine No. | Mesh | EBCT |
|---|---|---|---|---|
| Pump-and-treat (municipal well) | Coal-based granular GAC | ≥1000 mg/g | 8×30 | 10–15 min |
| Plume containment (high conc.) | Coal-based granular GAC | ≥1050 mg/g | 8×30 | 15–20 min |
| Permeable reactive barrier | Coal-based granular GAC | ≥1000 mg/g | 12×40 | Passive flow |
| Ex-situ batch treatment | Coal-based GAC | ≥950 mg/g | 8×30 | 15–20 min |
Not sure which grade fits your site? Send us your PFAS analysis and flow rate.
Send Us Your Site DataSystem Design
Designing a Pump-and-Treat GAC System for PFAS Groundwater
Lead-Lag Vessel Configuration
Two or more vessels in series. Exhaust the lead vessel fully while the lag guarantees compliant effluent — critical at ppt-level compliance where a single bed risks silent breakthrough.
EBCT 10–20 Minutes
Groundwater PFAS duty needs longer contact time than typical taste/odor service. Short-chain PFAS and co-contaminant load push EBCT upward.
Pre-Treatment Is Non-Negotiable
Iron, manganese, and TOC in extracted groundwater foul beds fast. An oxidation/filtration step upstream protects GAC capacity and extends bed life by months.
Spent Carbon Management
PFAS-laden spent carbon requires thermal reactivation at ≥700 °C or high-temperature incineration. Landfill disposal is increasingly restricted due to PFAS leaching.
Field Performance
Proven in Long-Running Remediation Projects
PFAS Groundwater Remediation — Frequently Asked Questions
How does activated carbon remove PFAS from groundwater?
GAC adsorbs PFAS through hydrophobic interaction between the carbon surface and the fluorinated tail of the PFAS molecule. In a pump-and-treat system, contaminated groundwater is extracted and passed through GAC beds in lead-lag configuration, achieving effluent below the EPA's 4 ppt PFOA/PFOS limits.
What type of activated carbon is best for PFAS groundwater remediation?
Coal-based granular activated carbon with iodine number ≥1000 mg/g is the standard for groundwater PFAS duty. Its balanced pore distribution and high hardness provide the best combination of adsorption capacity and durability for long-running remediation systems. Exact specifications — mesh size, CTC, iodine value — depend on your site conditions, and we will recommend the best-fit grade for your application.
How long does GAC last in a PFAS pump-and-treat system?
Bed life typically ranges from 12 to 36 months depending on influent PFAS concentration, co-contaminant load, flow rate, and EBCT. High-concentration AFFF plumes may require change-out every 6–12 months. Mid-point sampling sets the actual schedule.
Can GAC remove short-chain PFAS from groundwater?
GAC removes short-chain PFAS (PFBS, PFBA, PFHxA) but at significantly lower capacity than long-chain compounds. Short-chain PFAS breaks through at 15,000–40,000 bed volumes vs 40,000–100,000+ for PFOA/PFOS. For high short-chain concentrations, ion exchange resin in combination with GAC may be needed.
What happens to spent PFAS carbon from groundwater remediation?
Spent PFAS-laden carbon is sent for thermal reactivation at ≥700 °C, which destroys adsorbed PFAS. High-temperature incineration is also used. Landfill disposal is increasingly restricted. We can connect you with qualified reactivation facilities.
Remediating a PFAS Plume? Let's Spec Your Carbon.
Send us your flow rate, PFAS analysis (EPA 537.1 or 533), and remediation targets. Our technical team responds within 24 hours with a tailored GAC recommendation and factory-direct quotation.
Request a Remediation Quote
